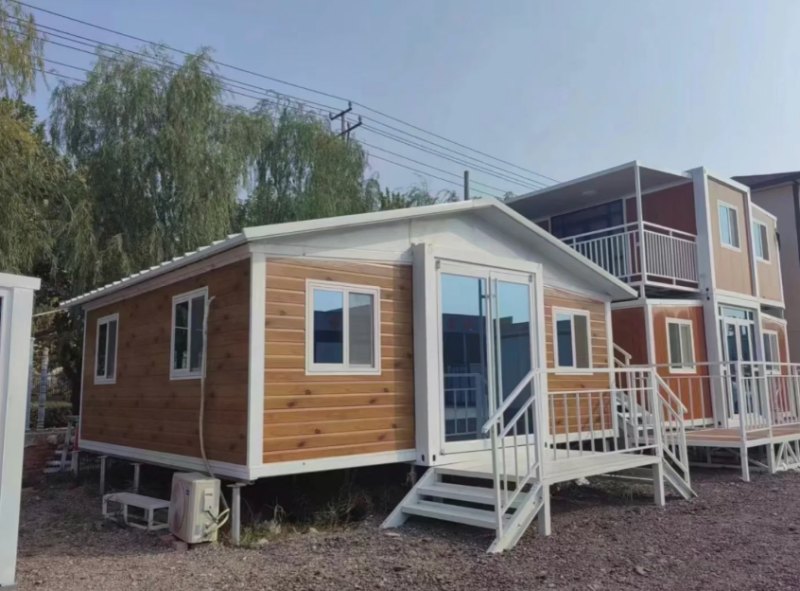

40ft expandable container houses are typically shipped from China in a folded state via ocean freight.A standard 40ft expandable container house measures approximately 11.8m x 2.2m x 2.48m when folded and weighs about 4.5–5 tons;it can usually be transported in a single 40ft High Cube(40HQ)container.However,the specific loading method depends on the product model,weight,folded dimensions,and packaging.
The entire shipping process generally involves six main stages:factory production and packaging,inland transport to the Chinese port,export customs clearance,international ocean freight,customs clearance at the destination port,and final delivery to the project site.
The following section details the complete shipping process—from dispatch at the Chinese factory to arrival in your region and delivery to the project site—covering steps such as factory loading,export customs clearance,international shipping,destination customs clearance,and local transport.
The primary difference in shipping between a 40ft expandable container house and a standard 40ft container house is that the expandable version is folded after factory production for transport and then expanded for use at the project site.Although both are designated as"40ft"—a term referring to the transport length specification—this does not mean they occupy the exact same amount of space.
For example,a typical 40ft"double-wing"expandable container house measures approximately 11.8m x 2.2m x 2.48m when folded,but its width expands to about 6.23m,resulting in a floor area ofroughly 72m².In contrast,a standard 40ft container house retains the dimensions of the container itself during transport,meaning the interior space does not gain additional lateral area through on-site expansion.
| Feature | 40ft Expandable Container House | Standard 40ft Container House |
|---|---|---|
| Transport State | Folded | Fixed unit |
| Length | 11.8–12 m | Approx. 12 m |
| Transport Width | 2.2–2.5 m | Approx. 2.35 m |
| Upon Arrival | Expands to create additional usable space | Remains largely unchanged |
| Expanded Space | Significantly increased | No additional space |
| Transport Advantages | Better transport-space utilization | Simple and established transport method |
It is important to note that a 40ft expandable container house is not simply a standard 40ft container"made larger."It utilizes a folding structure to stow walls,floors,or side wings during transport,keeping the unit compact.Upon arrival at the site,it expands to provide a usable area much larger than its transport footprint.
For instance,the house might be only about 2.2m wide when folded but expand to over 6m in width.This means the relationship between the space occupied during transport and the final floor area is not a simple 1:1 ratio.
Naturally,specific transport dimensions and loading methods depend on the product model.Variations in folded dimensions,weight,and structural design among different 40ft expandable houses may dictate the type of container required and the number of units that can be loaded per container.Therefore,before arranging sea freight,one should obtain accurate folded dimensions,product weight,and a loading plan from the factory.
Once production is complete,the factory conducts a final inspection to ensure the steel structure,wall panels,doors,windows,interior fixtures,and folding/expanding mechanisms meet specifications.The house is then folded and secured;doors,windows,wall panel corners,and other impact-prone areas are protected,while small accessories and installation components are typically packed separately.
While these preparations may seem like the final step before shipment,they are crucial for transport safety.Failure to confirm folded dimensions,weight,and loading methods beforehand—necessitating adjustments to the transport plan at the port or destination—can lead to additional handling costs and shipping delays.
Once production,inspection,and packaging are complete,the appropriate international shipping method for a 40ft expandable container house is selected based on the destination and product specifications.For most overseas markets,ocean freight is a common choice,particularly for exports from China to distant regions such as the United States,Australia,New Zealand,Europe,and Southeast Asia.
The specific shipping method depends on factors such as the destination country and port,the product's folded dimensions,weight,and local transport conditions.Land transport or other methods may be used for markets closer to China;for inland projects,the process typically involves ocean freight to the destination port followed by truck transport to the final site.
For most overseas ocean freight orders,the complete shipping process generally looks like this:
China Factory→Truck Transportation→Export Customs→China Port→Ocean Freight→Destination Port→Customs Clearance→Inland Delivery→Project Site
If the product is suitable for container shipping,a 40HQ(High Cube)container is a common choice.However,the specific container type required and the number of units that can fit into a single container cannot be determined solely by the product name.
For instance,different models of 40ft expandable container houses vary in folded dimensions,total weight,internal configuration,and packaging methods.Some products may be loaded at a ratio of one unit per 40HQ container,while more compact models might allow for different loading configurations.
Therefore,once the product is selected,it is advisable to request a detailed loading plan from the factory.This plan should clearly outline:
Folded Dimensions→Product Weight→Container Type→Loading Quantity→Loading Method
If you have chosen a customized model,you certainly cannot simply apply loading data from other manufacturers.Even if two products are both labeled as"40ft Expandable Container Houses,"differences in structural design and configuration can lead to variations in folded dimensions,weight,and shipping requirements.
When sourcing 40ft expandable container houses from China,the priority is not merely confirming whether ocean freight is possible,but rather determining the optimal shipping solution based on the specific product and destination,and verifying the loading method,shipping route,and estimated costs prior to shipment.
For a 40ft expandable container house shipped via a 40HQ(High Cube)container,the total logistics cost—assuming international ocean freight is the primary mode of transport—can range from a few thousand dollars to over US$10,000.The exact figure depends on the destination country,shipping route,port of departure,product weight,container loading method,and the distance for final delivery.
Shipping costs are rarely a single,all-inclusive figure.The"Ocean Freight"rate you see represents only a portion of the total logistics cost.Transporting the unit from the factory in China to your project site typically involves the following expenses:
Cost Item Details
| Cost Item | What It Typically Covers |
|---|---|
| Domestic Transport (China) | Trucking from the factory to the departure port |
| Export Costs | Customs clearance, export documentation, and port-related fees |
| Ocean Freight | Shipping from the Chinese port to the destination port |
| Destination Port Fees | Terminal handling, documentation, and other local port charges |
| Import Taxes & Duties | Taxes and duties calculated according to the destination country's regulations |
| Inland Transport | Transportation from the destination port to the final project site |
| Unloading Costs | Crane services or other equipment required to unload the container |
Ocean freight quotes are influenced by factors such as the destination port,shipping route,carrier,shipment timing,cargo weight,and container arrangement.Shipping the same 40ft expandable container house to the US,Australia,or Europe can result in significantly different total costs;even within the same destination country,different ports and project locations can lead to varying quotes.
Several key factors significantly influence the shipping cost for 40ft expandable container houses.
The destination is one of the most critical factors.Shipping routes and distances from China to the US West Coast,US East Coast,Australia,or Europe vary,causing ocean freight rates to fluctuate.Additionally,if your project site is far from the destination port,inland transportation costs will increase.
The product's folded dimensions and weight also affect the shipping strategy.Even among 40ft expandable container houses,different models vary in structure,wall composition,interior fittings,and configuration;consequently,loading methods and shipping weights differ.
The shipment quantity also impacts the overall logistics cost.When shipping multiple units,the factory can devise a container loading plan based on actual dimensions and weight,and calculate ocean freight and local transport costs for the entire batch.
Therefore,when requesting an accurate quote from a factory or freight forwarder,it is best to provide the following details:
Product Model+Folded Dimensions+Total Weight+Quantity+Loading Port+Destination Port+Final Delivery Address
The more complete this information is,the closer the quote will be to the actual final cost.
If you want to know the total cost to deliver a 40ft expandable container house to your project site,you can calculate it as follows:
Total Landed Cost=Factory Price+China Export Costs+Ocean Freight+Destination Charges+Import Duties/Taxes+Inland Delivery+Unloading
For example,a factory price of US$8,000 for a 40ft expandable container house does not mean the final project cost is US$8,000.Additional expenses may arise from ocean freight,customs clearance,local transport,unloading,as well as foundation work and installation.
This is why you should not look solely at the product price when comparing quotes from different factories.A product quoted at US$8,000 might include more features,whereas a US$7,000 product might require extra costs for a kitchen,bathroom,electrical system,or insulation,resulting in a completely different final cost.
When shipping a 40ft expandable container house from China to an overseas location,the total delivery timeline must account for production,export,ocean freight,destination customs clearance,and local transport—not just the ocean transit time.Production for standard products typically takes 15–20 working days,while customized products may require 25–35 working days.Ocean freight and destination delivery usually add several more weeks,depending on the loading port,destination port,shipping route,and local customs and transport conditions.
It is important to distinguish between production time and shipping time.A factory completing production does not mean the house has already begun its sea voyage;before the unit is officially loaded onto the ship,final inspections,packaging,container loading,port arrangements,and export formalities must be completed.The factors that truly determine when you receive your goods include the production cycle,shipping schedules,ocean transit distance,the need for transshipment,congestion at the destination port,customs clearance,and local inland transport.Notably,the ocean voyage itself is just one part of the overall delivery timeline.
If you choose a standard model,factory production typically takes about 15–20 working days;however,if the order involves custom layouts,materials,or configurations,the production period may extend to 25–35 working days or longer.Once production is complete,the actual ocean transit time depends on the specific shipping route.
Furthermore,the arrival of goods at the destination port does not mean the house has reached your project site.Customs clearance,container pickup,and local trucking all require time.If the project site is far from the port,or if local road and transport conditions are complex,special arrangements may be needed for the final leg of transport.
Therefore,if you have a specific project schedule,rather than simply asking"How long does shipping take?",it is better to ask the factory:"What is the estimated lead time from order confirmation to delivery at my site?"
This provides a more useful timeframe,as it accounts for the total cycle from placing the order to receiving the goods on-site,rather than just the time the ship spends at sea.
Once the house arrives at the destination port,it is not immediately trucked to your land.First,import clearance in the destination country must be completed,and applicable taxes and port fees paid,before the goods can be picked up.
After clearance is complete,the typical workflow is:
Destination Port→Local Truck→Project Site
You need to verify in advance whether the transport vehicle can access your project site.If the project is located in a residential area,on a rural road,or in an area with narrow roads,you must check whether large trucks can pass through.
Upon arrival at the site,unloading is required.The specific equipment used depends on the house's weight,site conditions,and product structure.Some projects require a crane,while other transport and installation plans may utilize different types of equipment.
Therefore,before shipment,you should confirm that the site is equipped with:
A sufficiently level foundation or installation area;
Road access for trucks;
Adequate space for unloading;
Sufficient operating space for lifting equipment;
Water,electricity,and drainage connections.Once the unit is unloaded,the actual on-site installation phase begins,involving positioning,unfolding,leveling,securing,and connecting utilities(water and electricity).
If you are planning to purchase a 40ft expandable container house from China,it is best to clarify shipping details before the goods are shipped,rather than waiting until production is complete to discuss them.
First,confirm the folded dimensions and total weight.These two figures determine the shipping method and container loading plan.Next,verify exactly how many units can fit into a 40HQ container and how the units are secured inside.
You also need to confirm the Incoterms used for the quote—such as EXW,FOB,or CIF.Different Incoterms entail different costs and responsibilities;you cannot simply look at the quoted price figure.You should also clarify who is responsible for domestic transport in China,export customs clearance,ocean freight,and destination port charges.
Finally,do not forget to confirm unloading conditions at the destination.Even if the sea voyage goes smoothly,additional costs and delays can still arise if trucks cannot access the site or if suitable unloading equipment is unavailable.
A comprehensive pre-shipment checklist should include:
Folded Dimensions→Weight→Loading Plan→Container Type→Shipping Port→Destination Port→Incoterm→Freight Cost→Destination Charges→Delivery Method→Unloading Method
Confirming these details in advance will make the subsequent shipping process much smoother.
Purchasing a 40ft expandable container house from China involves more than just loading a unit onto a ship.The complete process begins with factory production and folding/packaging,followed by container loading,export,ocean freight,customs clearance at the destination port,local transport,and on-site unloading.
For you,the most important thing to confirm upfront is not just the cost of ocean freight,but the total landed cost and shipping plan from the Chinese container house factory to your project site.Public market data shows that 40ft products vary in folded dimensions,weight,and loading capacity per 40HQ container;therefore,shipping quotes must be based on specific product parameters.
If you are planning to source from China,it is recommended that you ask the factory to provide full product specifications,folded dimensions,weight,loading plans,and shipping quotes before placing an order,and then calculate the total cost based on your destination port and final project address.This not only allows for more accurate budget control but also reduces the likelihood of discovering additional costs only after the goods have arrived at the port.
