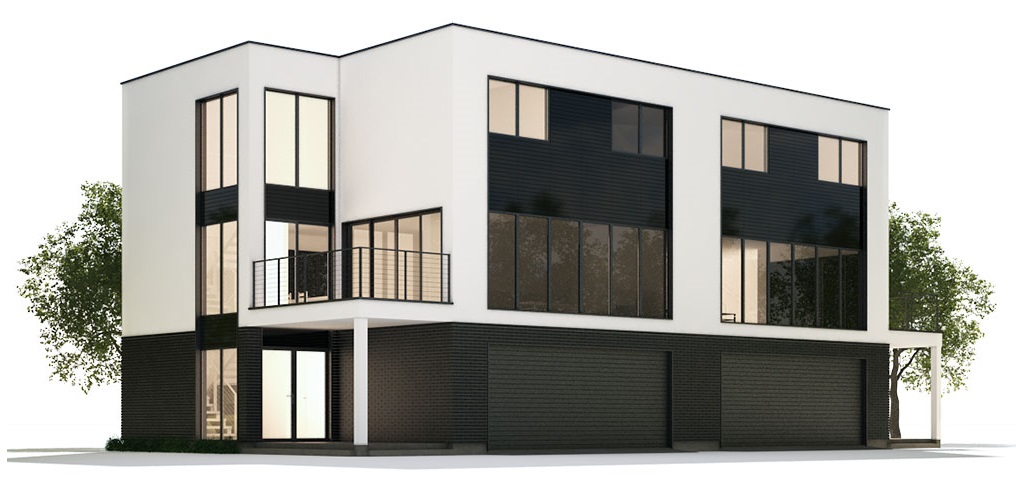

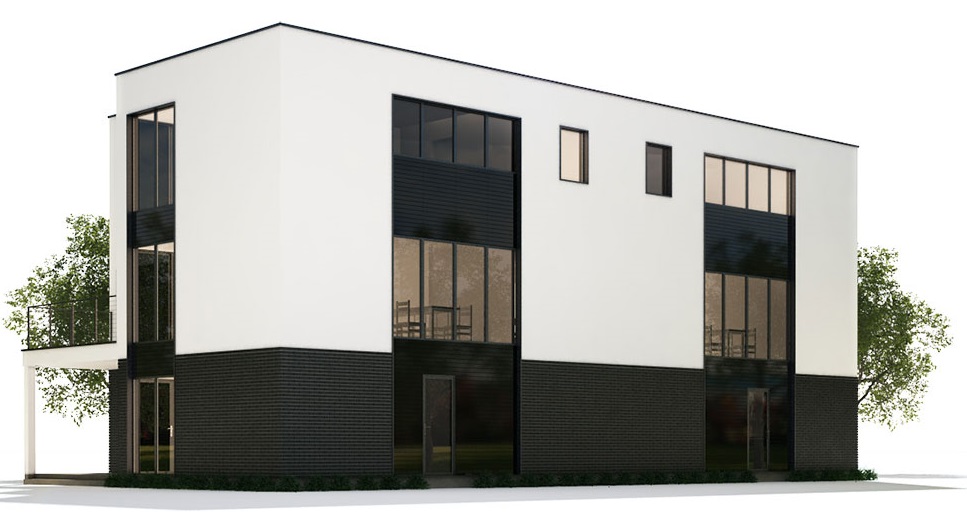

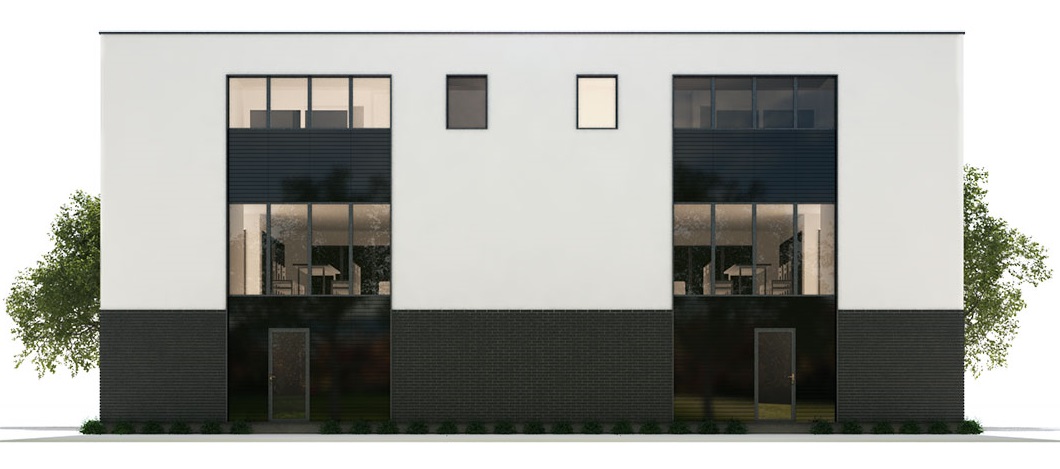

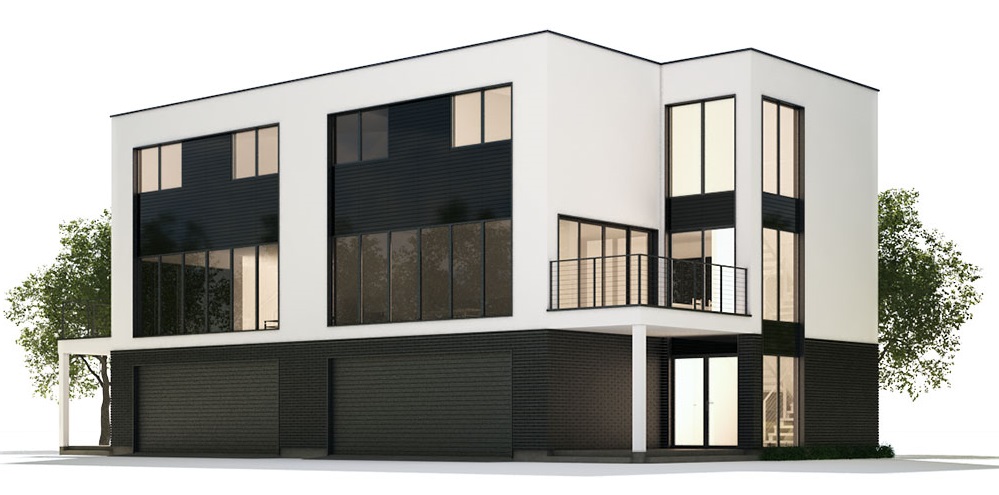

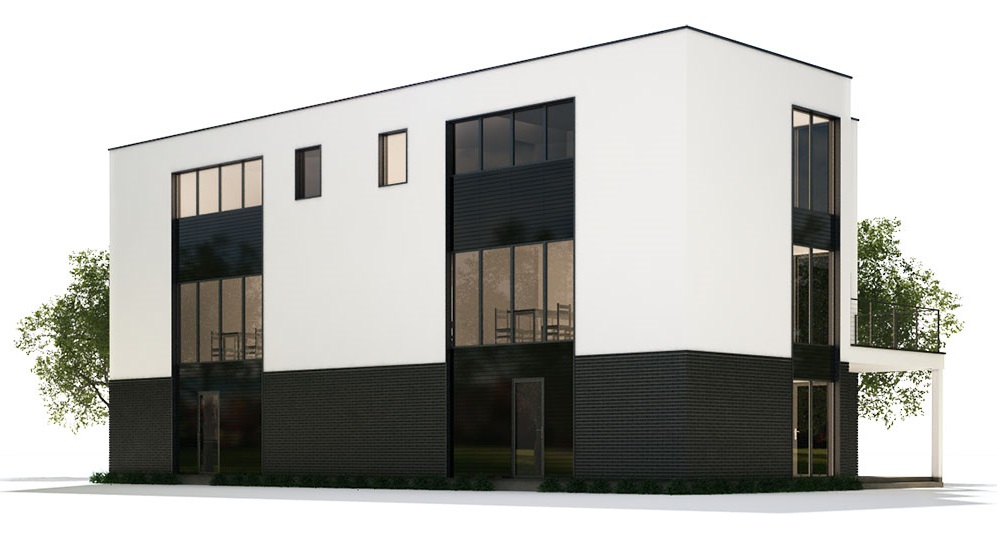

European-style prefab house

Description:

European-style prefab  house


TECHNICAL DATA


Total Area: 417.97m2

Stories: 3

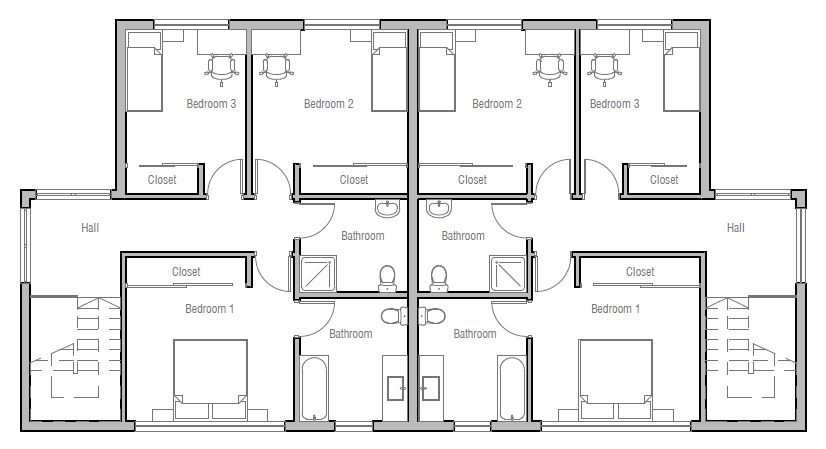

Bedroom: 3

Bathroom: 3

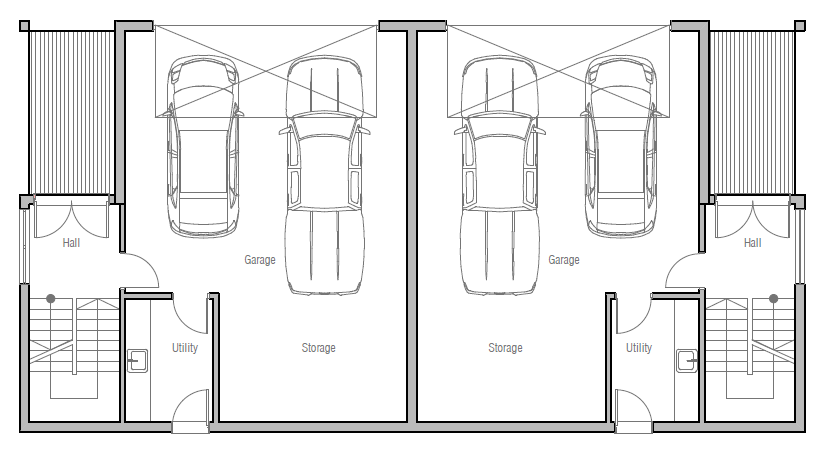

Garage: 2

Height: 9m

Price: $91953/set


inquire Now
Product Information

European-style prefab house




House solution option 1 :

Specification of Light Gauge Steel Framing Villa House

Main structure: Light gauge steel framing, thickness 0.8~1.2mm, Z275/AZ150, G550

Exterior Wall system: Light gauge steel frame+Glass wool+Bulu board+breathing paper+Outer decoration material

Interior Wall System:

Waterproof wall: Light gauge steel frame+Glass wool+PE waterproof film+Cement board+wall tile

Ordinary wall: Light gauge steel frame+Glass wool+Gypsum board+Putty+Paint

Roof: Light gauge steel roof truss+glass wool+SBS waterproof film+roof tile

Ceiling: Gypsum board or aluminum ceiling

Floor: Wooden or tile

Window: Aluminum alloy or plastic steel

Door: Steel security door/ wooden door/ aluminum alloy door

Other fittings optional: Shower room, toilet, kitchen

Lifespan: 70 years

Performance and advantages:

Wind Resistance

Light Weight

Thermal Insulation

Snow load and Moisture Proof

Long Life Span

House solution option 2 :

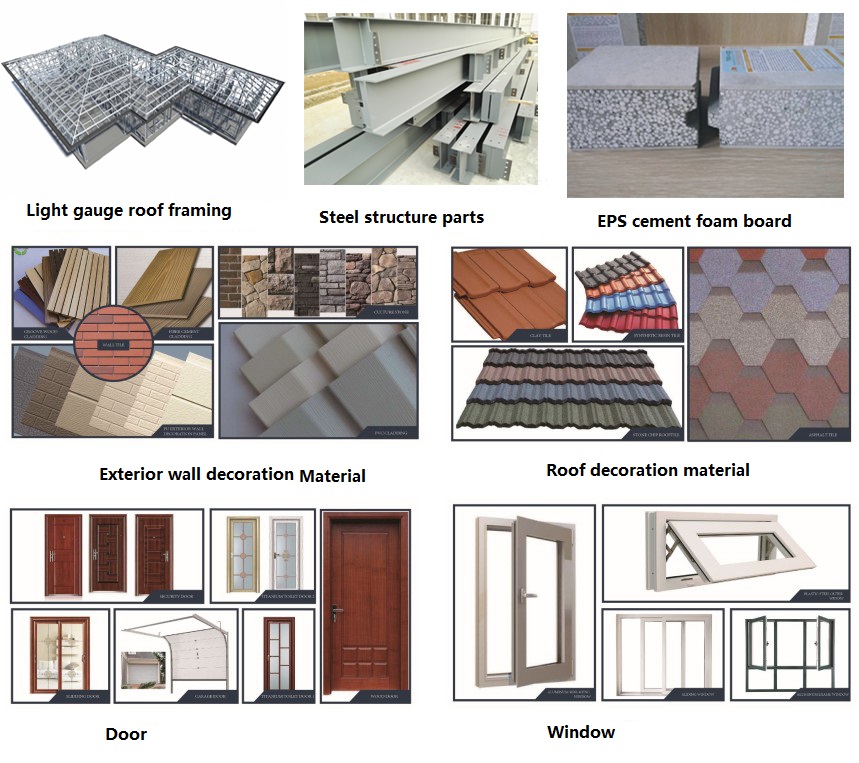

House Body parts:

1)roof panel:Eps cement panel

2)purling:C purling or light steel keel C channel

3)A-beam:hot galvanized steel

4)floor support panel:EPS cement panel

5)wall panel:Eps cement panel

6)Truss support floor:H steel or square beam

Windows and Doors

1)Window:PVC Aluminum ally or broken bridge aluminum window with single ,double triplex glass

2)Door :PVC,Aluminum or wooden door

3)Main entrance Door:Steel security or wooden door

House Decoration

1)water proof materials:Asphalt shingle or water proof roll

2)External wall Decoration Materals:culture stone ,PVC plate or Latex painting(colors can be chose)

3)Ceramic tile

Advantage

1)Energy-saving and Environment protection

2)50years service time

3)High prefabricated capability

4)Low self-weight and material saving

5)Comfortable living :waterproof ,insulation fire-proof ,sound-proof

6)Easy and fast installation
