American style Prefabricated villa

Morden design American style Prefabricated villa

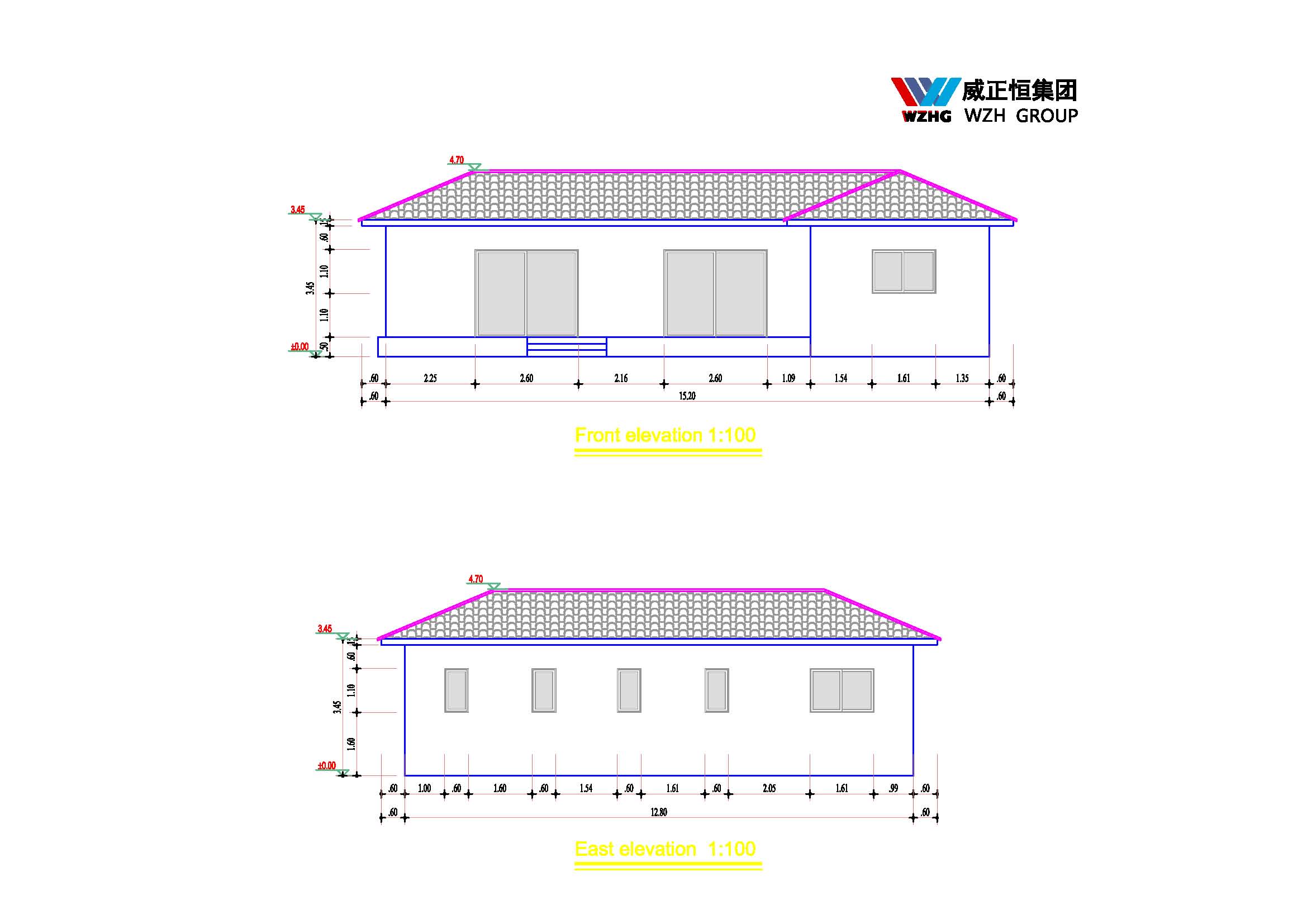

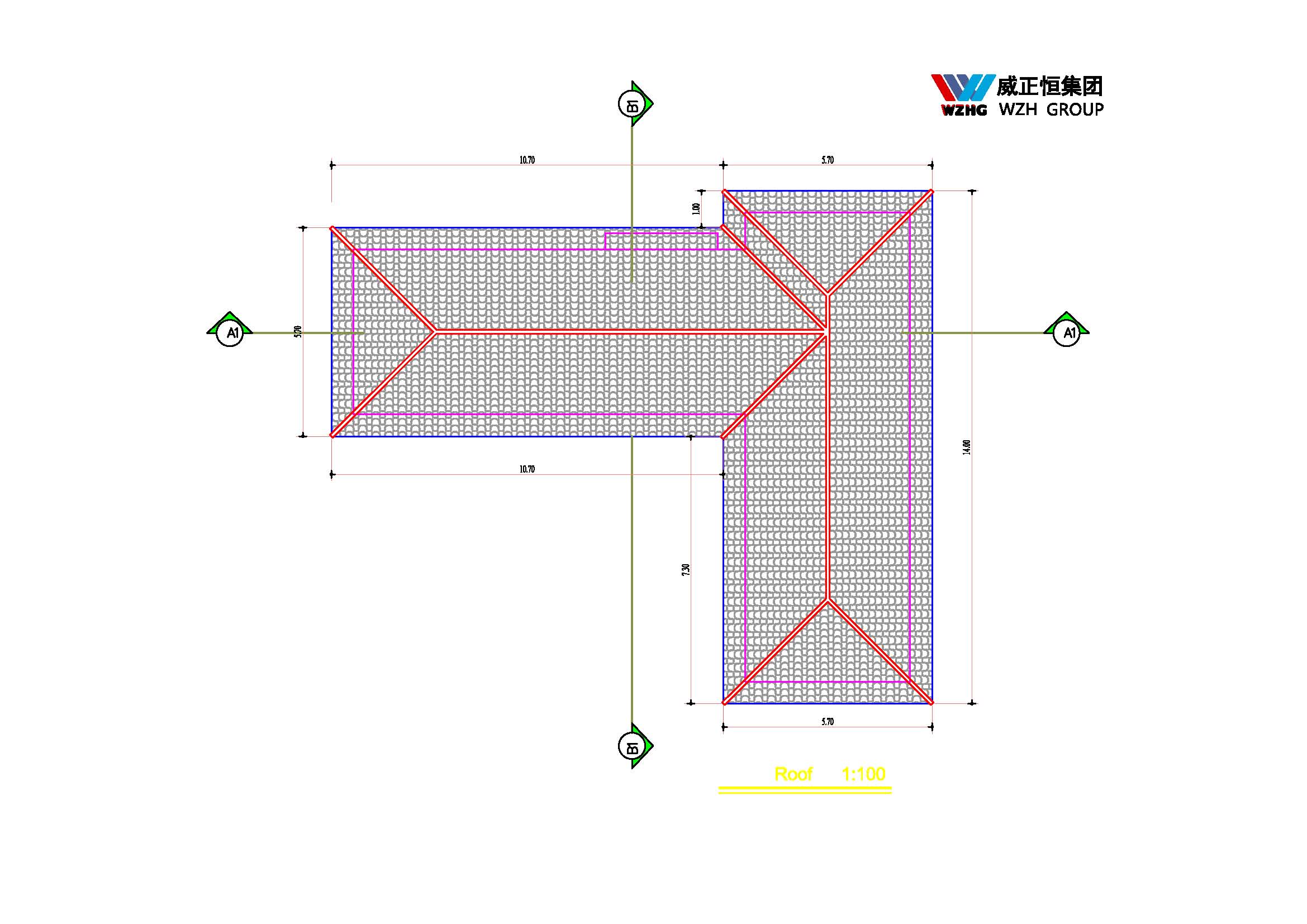

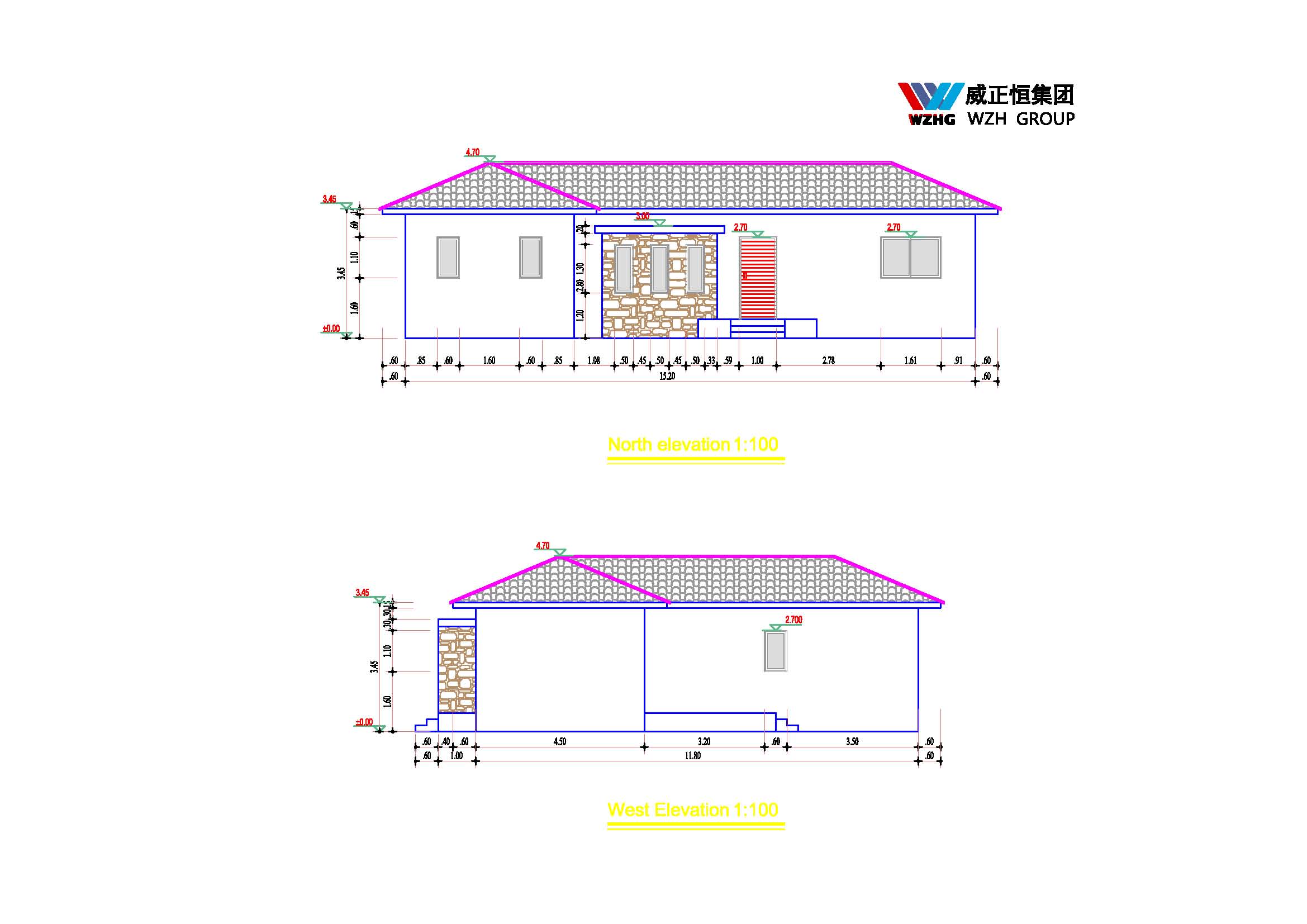

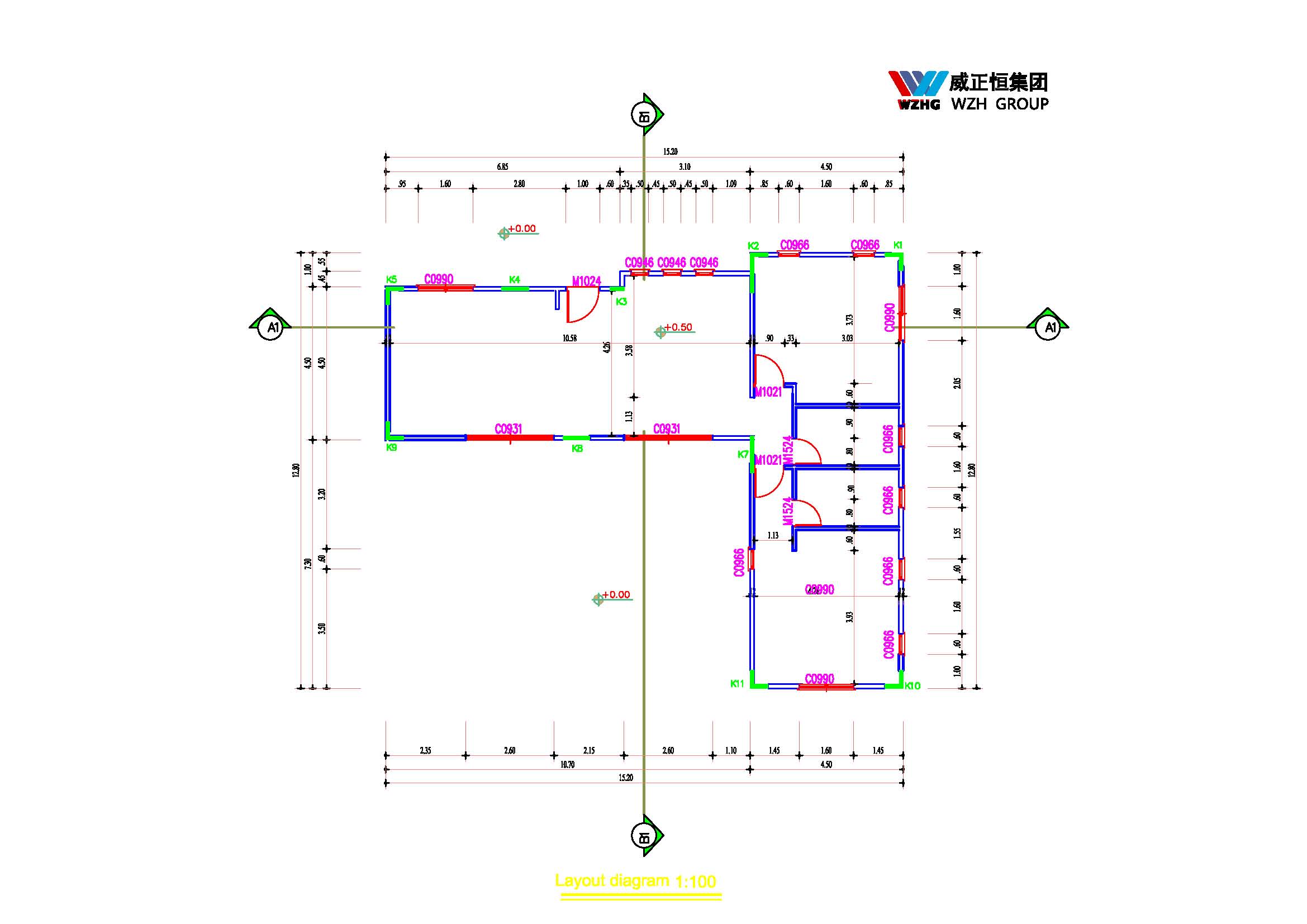

Detail layout diagram of the villa house

House solution option 1 :

Specification of Light Gauge Steel Framing Villa House

Main structure: Light gauge steel framing, thickness 0.8~1.2mm, Z275/AZ150, G550

Exterior Wall system: Light gauge steel frame+Glass wool+Bulu board+breathing paper+Outer decoration material

Interior Wall System:

Waterproof wall: Light gauge steel frame+Glass wool+PE waterproof film+Cement board+wall tile

Ordinary wall: Light gauge steel frame+Glass wool+Gypsum board+Putty+Paint

Roof: Light gauge steel roof truss+glass wool+SBS waterproof film+roof tile

Ceiling: Gypsum board or aluminum ceiling

Floor: Wooden or tile

Window: Aluminum alloy or plastic steel

Door: Steel security door/ wooden door/ aluminum alloy door

Other fittings optional: Shower room, toilet, kitchen

Lifespan: 70 years

Performance and advantages:

Wind Resistance

Light Weight

Thermal Insulation

Snow load and Moisture Proof

Long Life Span

House solution option 2 :

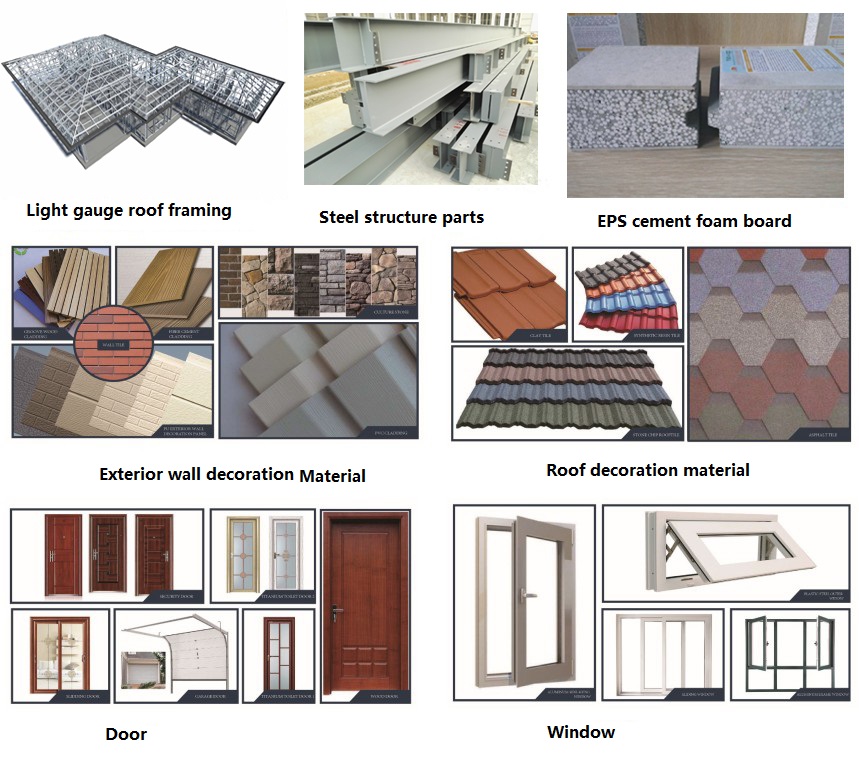

House Body parts:

1)roof panel:Eps cement panel

2)purling:C purling or light steel keel C channel

3)A-beam:hot galvanized steel

4)floor support panel:EPS cement panel

5)wall panel:Eps cement panel

6)Truss support floor:H steel or square beam

Windows and Doors

1)Window:PVC Aluminum ally or broken bridge aluminum window with single ,double triplex glass

2)Door :PVC,Aluminum or wooden door

3)Main entrance Door:Steel security or wooden door

House Decoration

1)water proof materials:Asphalt shingle or water proof roll

2)External wall Decoration Materals:culture stone ,PVC plate or Latex painting(colors can be chose)

3)Ceramic tile

Advantage

1)Energy-saving and Environment protection

2)50years service time

3)High prefabricated capability

4)Low self-weight and material saving

5)Comfortable living :waterproof ,insulation fire-proof ,sound-proof

6)Easy and fast installation

Useful

villa house

prefab tiny house

affordable prefab homes

modular residential house

prefab cottage homes

The WZH will also be built to the highest energy efficiency standard that can be offered in Australia, so be rest assured that not only will you have the comfort of living in a modern contemporary home, but you will also enjoy lower energy bills for many years.
