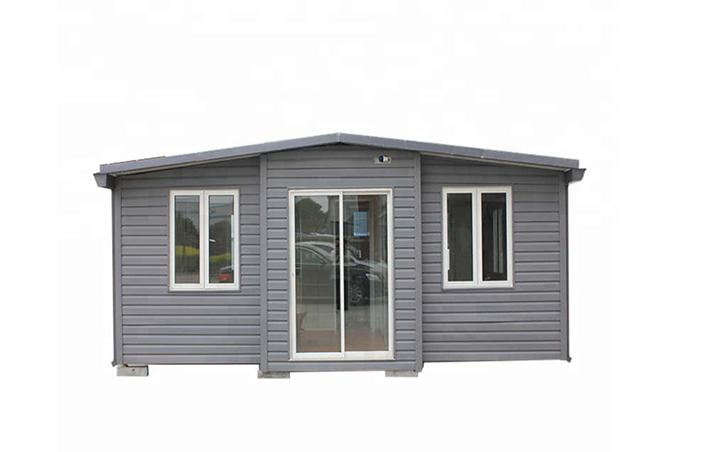

20ft / 40ft prefabricated luxury expandable container house

20ft / 40ft prefabricated luxury expandable container house

The container house has grown in popularity of the past several years due to their inherent strength, wide availability, and relatively low expense.

 We have also started to see people build homes with containers because they are seen as more eco-friendly than traditional building materials such as brick and cement. And

always self-develop the expandable container house , which is pre-assemble 95% before leaving the factory , fast and easy to assemble . And it can be moved frequently with the

 larger living area comparing with the flat pack container house  .

Features :

1. Safty and reliable light steel flexible structural system

2. Easy to transport, assemble and disassemble, repetitive to use

3. Unique design , which is attractive and comfortable to live in

4. Waterproof, soud-insulated, heat preservation, seal, easy to clean and maintenant

5. The custom house layout and decoration is available

6. Widely modal application, the office, conference room, dormitory, storage , home , dormitory etc.

Technical data :

Max.wind proof : 120 km/h

Max.earthquack : 8 grade

Roof load : 250 kg/m2

Floor load : 400 kg/m2

House layout : Custom made

The detail specification of the expandable container homes

Size : 20ft : 6400*5800*2530 mm

         40ft : 6400*11800*2530 mm

Steel frame : Painted / Galvanized square tube/ C beam

Wall : 50/75 EPS/PU sandwich panel

Roof : 50/75 EPS/PU sandwich panel

Floor : Structral board + PVC floor

Window : double glazed PVC/ aluminium alloy window

Door : Glass door , wood door and titanium magnesium alloy door

Electrical : China /Australia / American / French / European standard is available .

Pipeline : Available

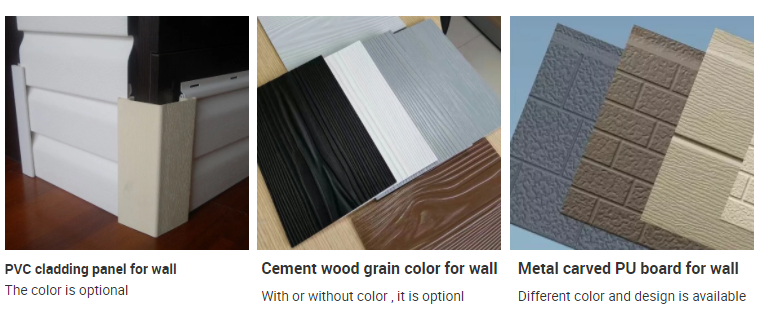

External wall decoration optional : PVC cladding panel , cement wood grain board , color corrugated steel sheet

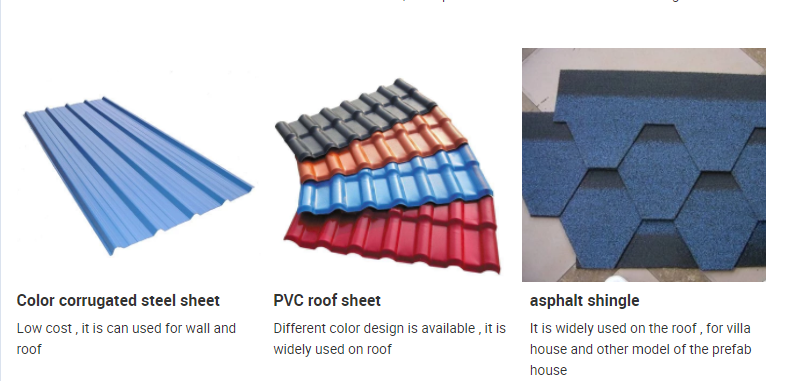

Roof decoration optional : Lightg gauge steel roof frame system + asphalt shingle / color corrugated steel sheet

Bahtroom : toilet , shower room and the wash basin

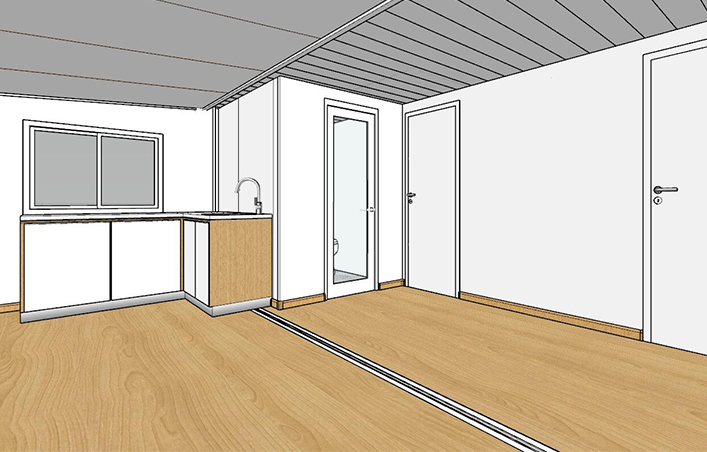

Kitchen : I /L shape cupboard with sink

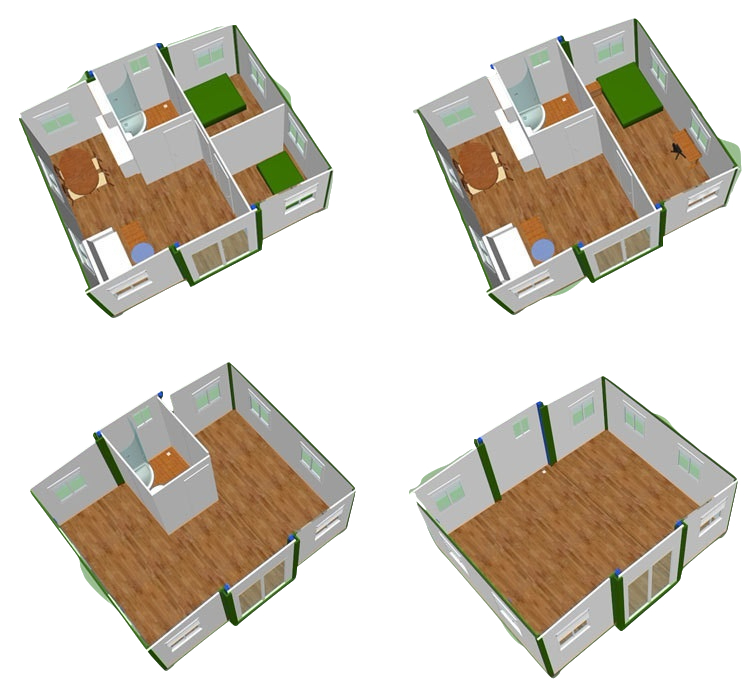

Custom house layout

Optional decoration materials :

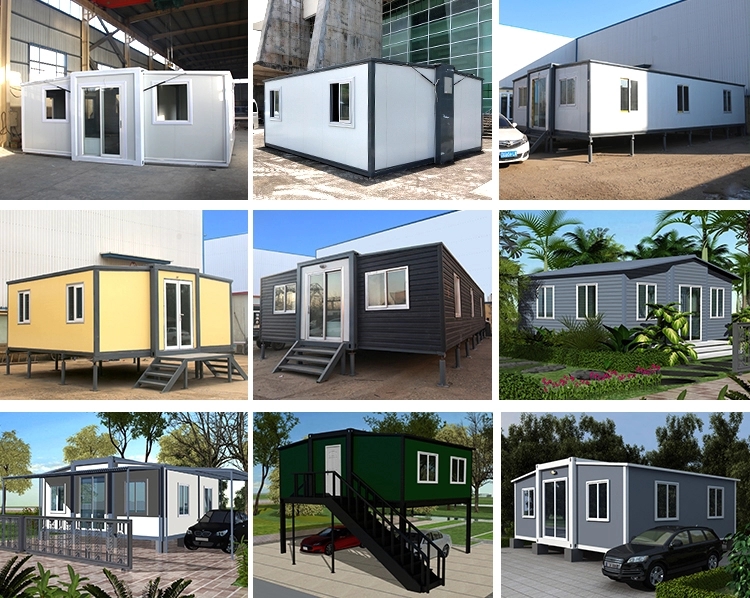

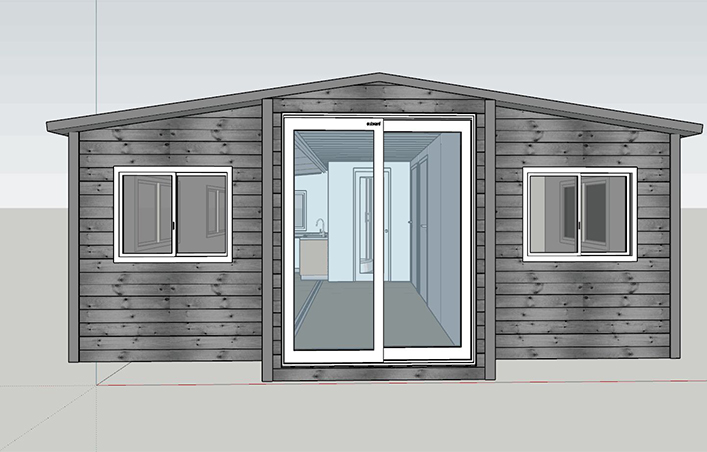

Optional designs of the expandable container house
