Steel structure horse barn

Product Information

Steel structure horse barn
Main house is steel structure,also have shed structure
We select suitable wall and roof material according to your local tempreture and other weather datas.
Please inform your max wind load,eathquake and snow bear load,then we can quote and design,
If your requirement is a cow farm base,please inform us the whole size of the area.We can also plan the base for you
Steel structure cow barn breakdown drawing:

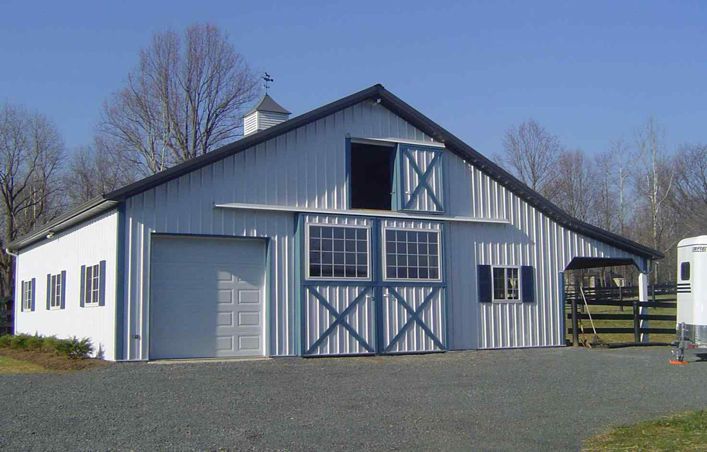

Horse barn types:

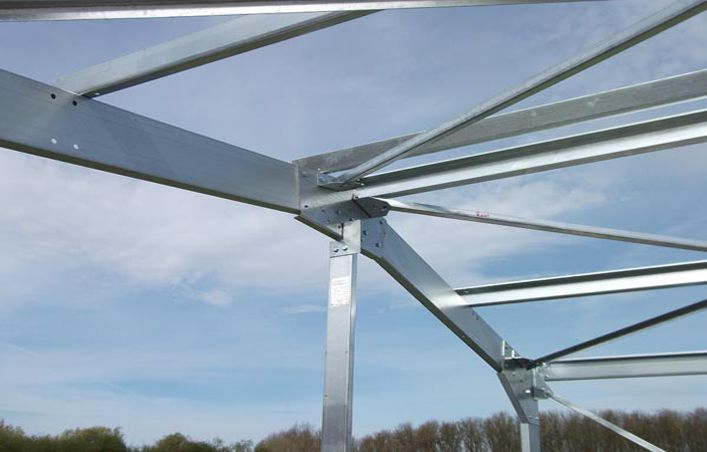

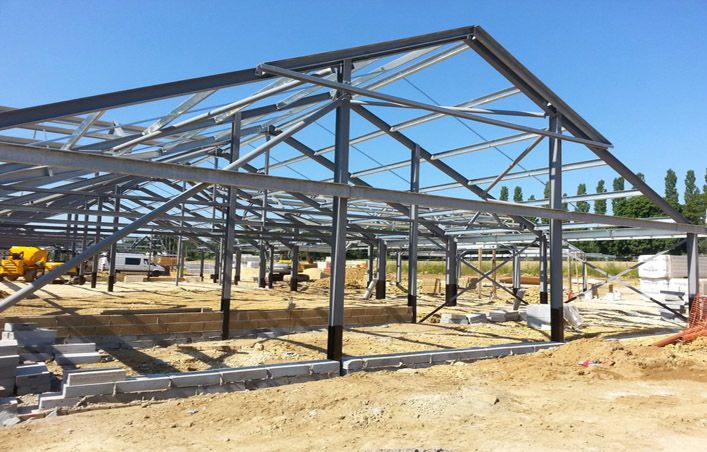

Horse barn breakdown photo:

H sections:

Material:Q235/Q345
Surface:Galvanized zinc coat or two-layer of rich-zinc expoy paint
Usage:Make up the main steel structure frame

Roof sheet and ridge tile:

Color:Ral colors,optional
Thickness:0.2-0.8mm
Usage:Roof or wall panels for steel structure buildings panels
We have several lines of press.can produce many types of corrugated sheets

Sandwich panel/cladding panel

Made up by two PPGI surface sheets and core material
Classification as shapes:Wall panel and roof panel
a. Wall panel:one side is PPGI corrugated sheet,another side is plain PPGI sheet or both sides are small wave sheets.
b. Roof panel:top side are PPGI corrugated sheets,another side is plain or small wave sheets.
Classification as core materials:EPS sandwich panel,Rockwool sandwich panel,PU/PIR sandwich panel,etc
Applications:Fire protection and warm insulation
Advantage:Removable,light weight and easy to installed

C/Z purlins
Material:Q235 or Q345
Surface:Galvanized zinc coat
Classification:Z purlin and C purlin
Applications:For supporting protection structure,panels

Bolts

As the structure main connection component.they can be classified as positions on the structure.
Foundation bolts:For connecting basement and main structure part.
              Grade:M24
High strength bolts:For connecting main structure part,such as pillars,beams.
                Grade:M20
Common bolts:For connecting second part structure
             Grade:M12
